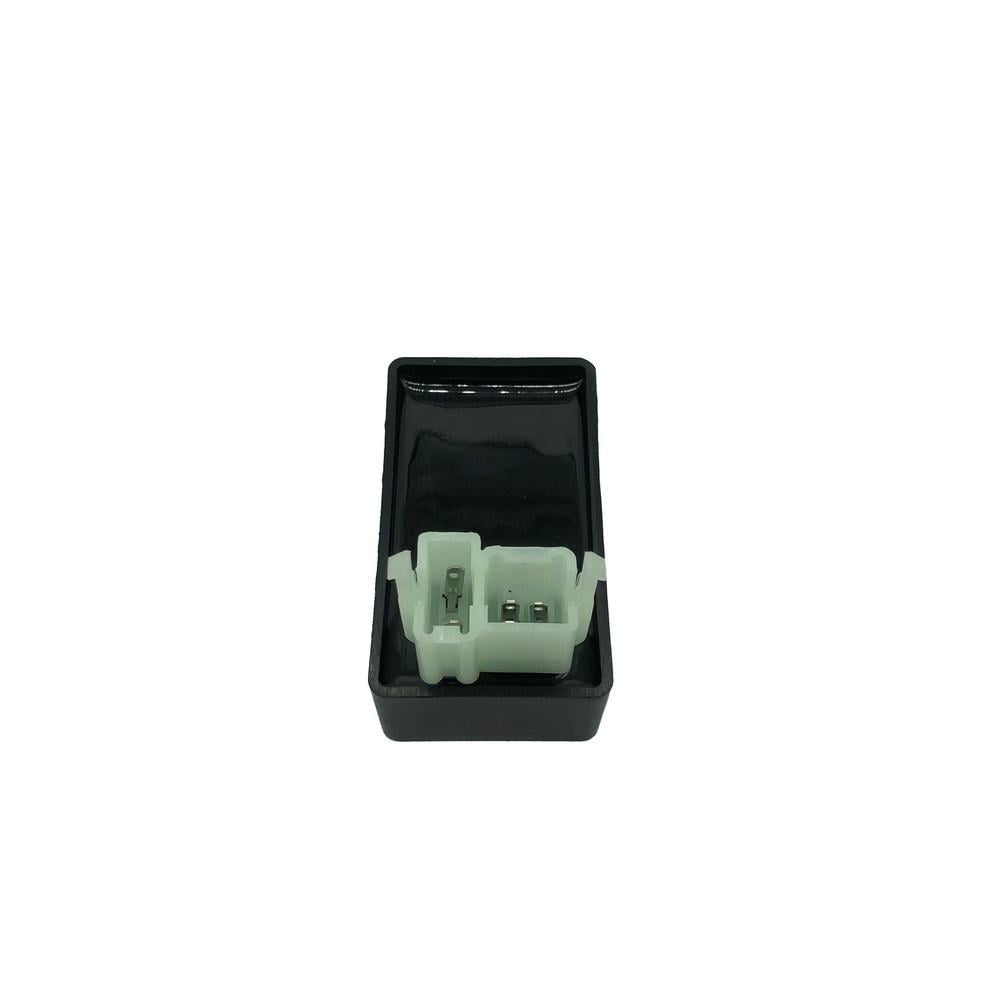

This CDI ignition module controls the ignition spark on compatible motorcycles and scooters. It is intended to replace the original capacitive-discharge ignition unit where the application and connector configuration match.
Features
- Provides electronic ignition advance.
Specifications
- Electronic type: analogue
- Ignition input: AC coil
- Outputs: 1
- Terminals: 6
- Dimensions: 68 mm long × 38 mm wide × 23 mm high
Cross-Reference OEM Part Numbers
- 30410-KB1-930
- 30410-KN7-670
- 30410-KB7-671
- 30410-KB7-940
- 30410-MC4-003
- IHA6005
- Pietcard 2063
Vehicle Fitments
- Honda CB125S – 1985
- Honda XL125 – 1985-1986
- Honda Elite CH150, 150 cc – 1985-1986
- Honda Elite CH150D, 150 cc – 1985-1986
- Honda CBX Aero, 150 cc – 1990-1997
- Honda XL R, 250 cc – 1982-1983
- Honda XL R, 500 cc – 1982
- Honda SDH Storm 4G, 125 cc – 2003-2006
