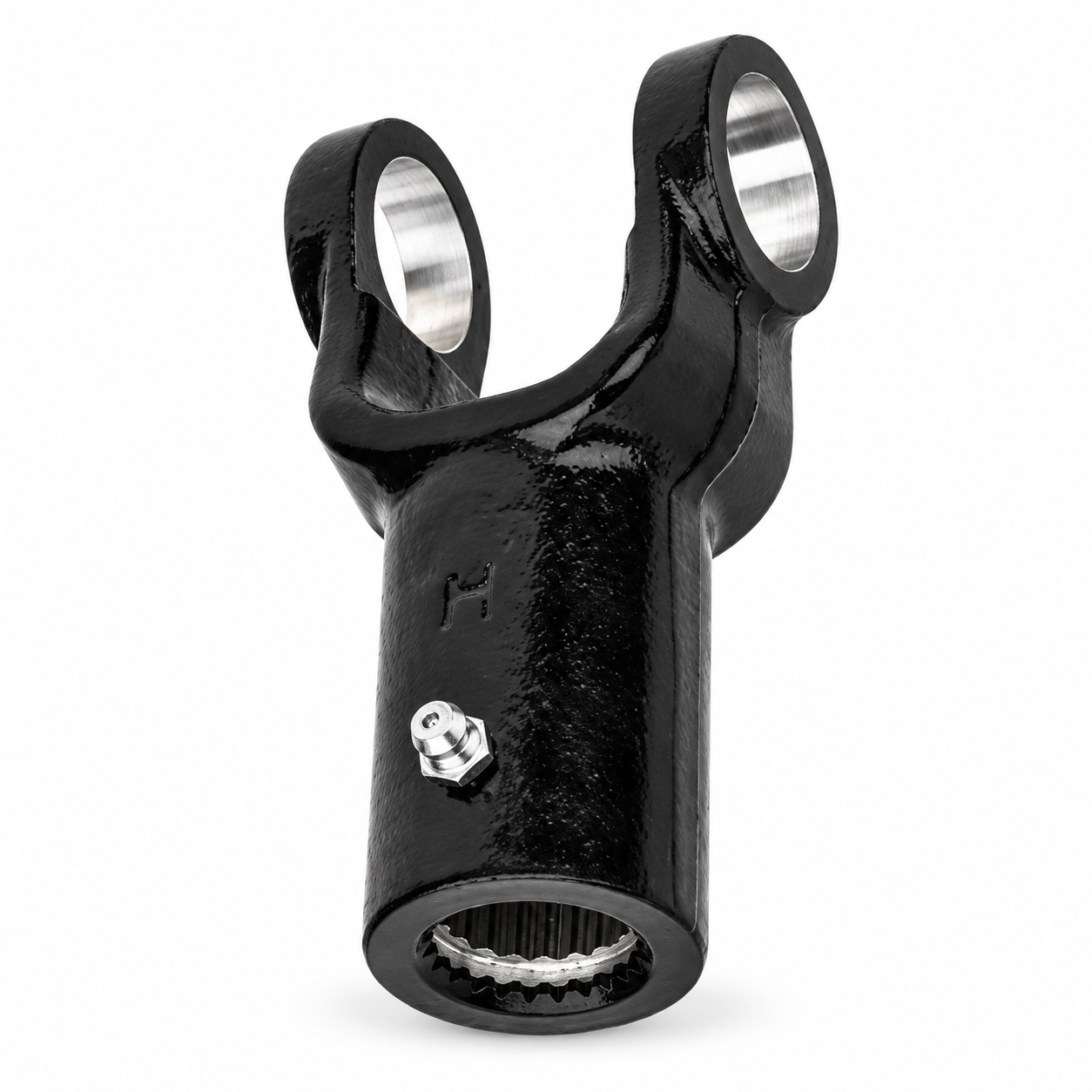

This transmission-side prop shaft yoke is a replacement driveline component for selected Polaris ATV and UTV applications. It corresponds with Polaris part number 3260131 and is fitted at the transmission or main gearcase end of the prop shaft. It is intended to replace an individual worn or damaged yoke while retaining the original prop shaft arrangement. This listing is for the yoke only and does not include the U-joint, cross and bearing kit, prop shaft or front gearcase yoke

Features

Replacement transmission-side prop shaft yoke.
Suitable for selected Polaris ATV and UTV driveline applications.
Direct replacement for the corresponding original yoke.
Allows the individual yoke to be replaced without replacing the complete prop shaft assembly.
Designed for use with the original prop shaft and universal joint arrangement.
Original part number, vehicle model and build date should be checked before ordering.

Package Contents

Transmission-side prop shaft yoke x 1
U-joint kit not included.
Cross and bearing kit not included.
Prop shaft not included.
Front gearcase yoke not included.

Cross-Reference OEM Part Numbers

3260131

Vehicle Fitments

Polaris ATP 330 4×4 (2004-2005)
Polaris ATP 500 4×4 HO (2004-2005)
Polaris Diesel 455 4×4 (1999, 2001-2002)
Polaris Magnum 325 4×4 (2000-2002)
Polaris Magnum 330 4×4 (2003-2006)
Polaris Magnum 500 4×4 (1999-2003)
Polaris Scrambler 400 4×4 (1998-2000, 2002)
Polaris Scrambler 500 2×4 (1998)
Polaris Scrambler 500 4×4 (1999-2009)
Polaris Sportsman 335 4×4 (1999-2000)
Polaris Sportsman 400 4×4 (2001-2005)
Polaris Sportsman 450 4×4 (2006-2007)
Polaris Sportsman 500 4×4 (1996-2000)
Polaris Sportsman 500 HO, EFI and 6×6 variants (2001-2008, depending on model configuration)
Polaris Sportsman Touring 500 EFI (2008-2009)
Polaris Sportsman 600 Twin (2003-2005)
Polaris Sportsman 700 Twin / Twin EFI (2002-2006)
Polaris Sportsman 700 EFI (2007)
Polaris Sportsman 800 Twin EFI (2005-2006)
Polaris Sportsman 800 / 800 EFI (2007)
Polaris Sportsman 800 HO EFI (2008)
Polaris Sportsman Touring 800 EFI (2008; build-date restrictions apply)
Polaris Sportsman X2 500 EFI (2006-2008)
Polaris Sportsman X2 800 EFI (2007)
Polaris Sportsman X2 700 EFI (2008; units built 29 October 2007 and earlier use 3260131)
Polaris Sportsman MV7 (2005)
Polaris Worker 335 (1999)
Polaris Worker 500 (1999-2001)
Polaris Xpedition 325 4×4 (2000-2002)
Polaris Xpedition 425 4×4 (2000-2002)
Polaris Xplorer 250 4×4 (2000-2002)
Polaris Xplorer 400 4×4 (1999-2002)
Polaris Xplorer 500 4×4 (1997)
Polaris Ranger 500 6×6 (1999)
Polaris Ranger 425 2×4 (2001, 2003-2004)
Polaris Ranger 500 4×4 / 6×6 (2001-2005, depending on configuration)
Polaris Ranger TM (2004-2006)
Polaris Ranger 500 4×4 EFI (2006-2009)
Polaris Ranger 700 / XP 700 4×4 and 6×6 EFI variants (2006-2009)
Polaris Ranger Crew 700 EFI (2008-2009)
Polaris Ranger 800 6×6 (2010-2016)
Some 2008 applications changed yoke specification during production. Where applicable, part number 3260131 is specified for machines built on or before 29 October 2007, with later machines using a different yoke. Confirm the vehicle build date and original yoke part number before ordering.
