PISTON KIT VERTEX 100.0 A HC KTM SX/XC 505 08-11, VERTEX 23417A HC ATV COMPR 12,5:1

VERTEX UK PISTON KIT ? ? ? ? ? 23417A ? ? ? HC Compr 12.5:1 ? ( )

All Vertex Pistons Feature: ?
– Standard pistons and components are OEM replacements.

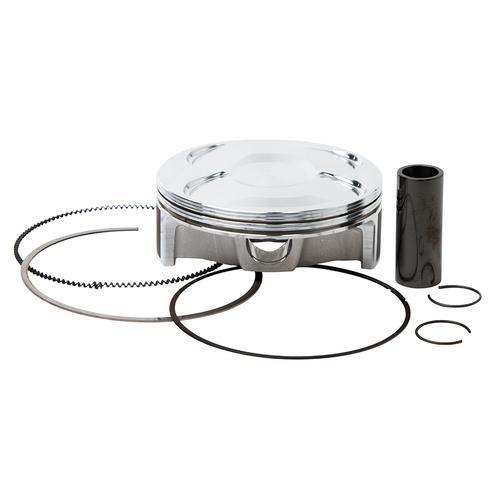

– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE. ? 100.00 [A ? 99.94mm]

Replacement Parts.

• Rings. ? 590210000001 SET
• Pin. ? 711174
• Clips. 72073

Cross reference numbers ONLY.

• Piston Pin 77630033000
• Circlip ? 77630074000
• Piston D=100 07 77630007000 I 77630007200 I
• Piston D=100 07 77630007000 II 77630007300 II
• Oil Scraper Ring ? 77630032000 77630032100
• Rectangular Ring D=100 07 77630030000

MODEL FITMENT

• KTM SX 505F 2008-2009 HC COMPR 13,5:1
• KTM SX 505F 2009-2011 HC COMPR 12,5:1 ?
• KTM XC 505F 2008-2011 HC COMPR 12,5:1

?

?
