PISTON KIT CRF450R 17-25 13.5, WISECO 40177M09600A 13.5:1 Comp, ArmorGlide W40177M09600A

Part No. 56-W9949.WI ( )

HONDA CRF450R 2017-2025
HONDA CRF450RX 2017-2025
ArmorGlide WISECO 40177M09600A STD BORE 96.00mm (95.94mm)
Wiseco Piston Kit 96mm Std. Bore 13.5:1 Compression.

Dedicated forging – Light weight and superior strength – High Compression – Maximum torque and throttle response – Super finished piston pin – Reduced friction/scuff resistant – Horizontal slot pin oiling – Improved lubrication and better pin oiling, reduced friction – Pressure seal groove – Maximum ring seal – ArmorGlide skirt coating – Reduced friction – Dedicated rings – Maximum compression and oil control.

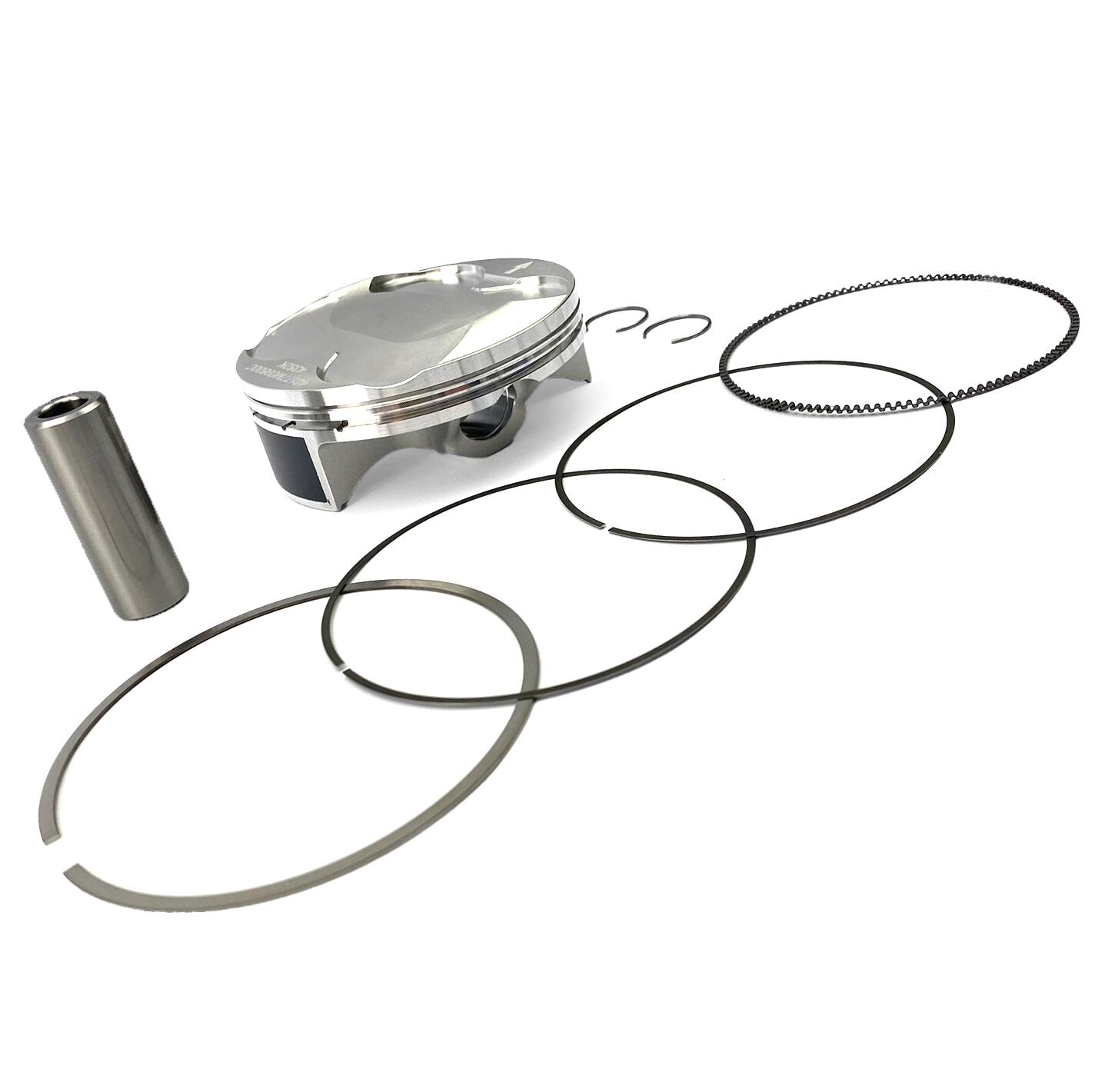

Piston includes piston, rings, pin, and circlips.
Cross reference numbers ONLY. W40177M09600, [13101-MKE-A00 + 13011-MKE-A00 + 13111-MKE-A01 + 13112-MKE-A00]
REPLACEMENT PARTS. RINGS 9600ZV, PIN 748-2050-16-93C, CLIPS CW19
