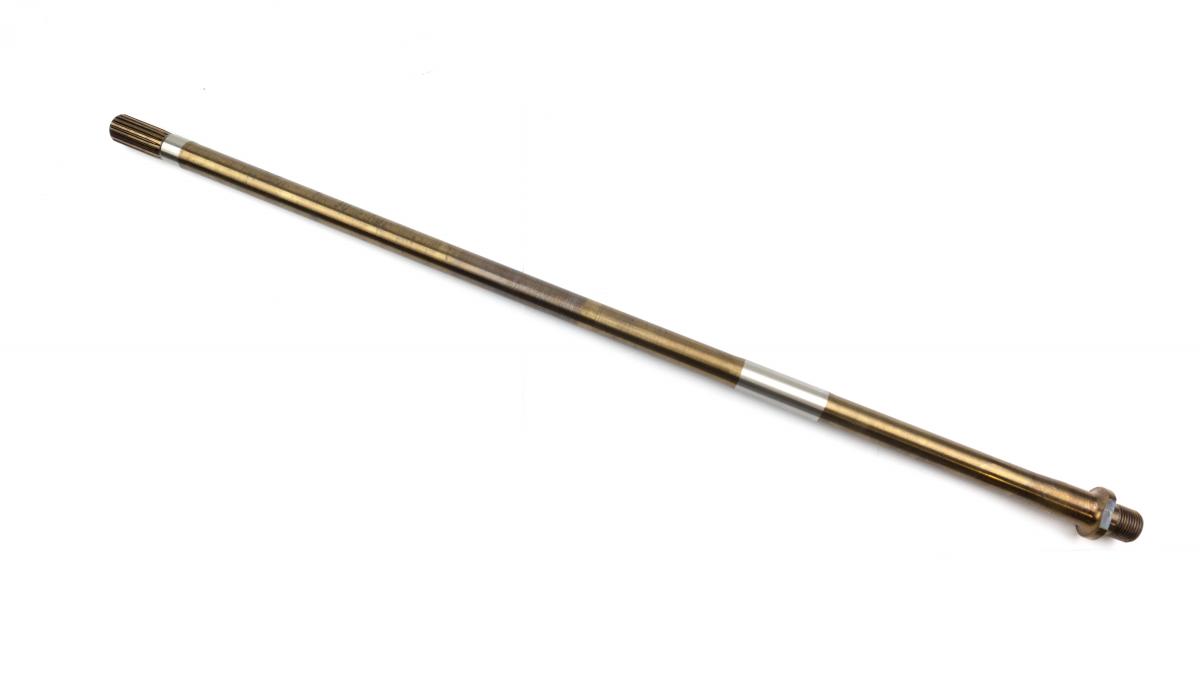

This driveline shaft is designed for the Kawasaki Jet Ski 800 SX-R stand-up PWC and provides the mechanical link between the engine and the jet pump impeller. It is a direct-fit replacement for the original driveshaft used on model years 2003–2011 and corresponds to aftermarket reference WC-03342, replacing Kawasaki OEM number 39159-3738.
Features
- Transfers torque from the crankshaft to the impeller for consistent propulsion
- Threaded at one end and splined at the other for correct interface with coupler and impeller
- Engineered to withstand friction and fatigue at the threads and splines
- Direct-fit geometry for the 800 SX-R driveline and pump assembly
Specifications
- Part type: Drive shaft / driveline shaft
- Manufacturer reference: WC-03342
- Overall length: 27 1/8 in (approx. 689 mm)
- End configuration: One threaded end / one splined end
- Application: Kawasaki JS800 800 SX-R stand-up personal watercraft
Cross-Reference OEM Part Numbers
- Kawasaki 39159-3738
- Kawasaki 391593738
Vehicle Fitments
-
Kawasaki Jet Ski 800 SX-R (JS800), 2003–2011
