CONNECTING ROD KIT 76-81 YAMAHA DT 125 VINTCO KR2072

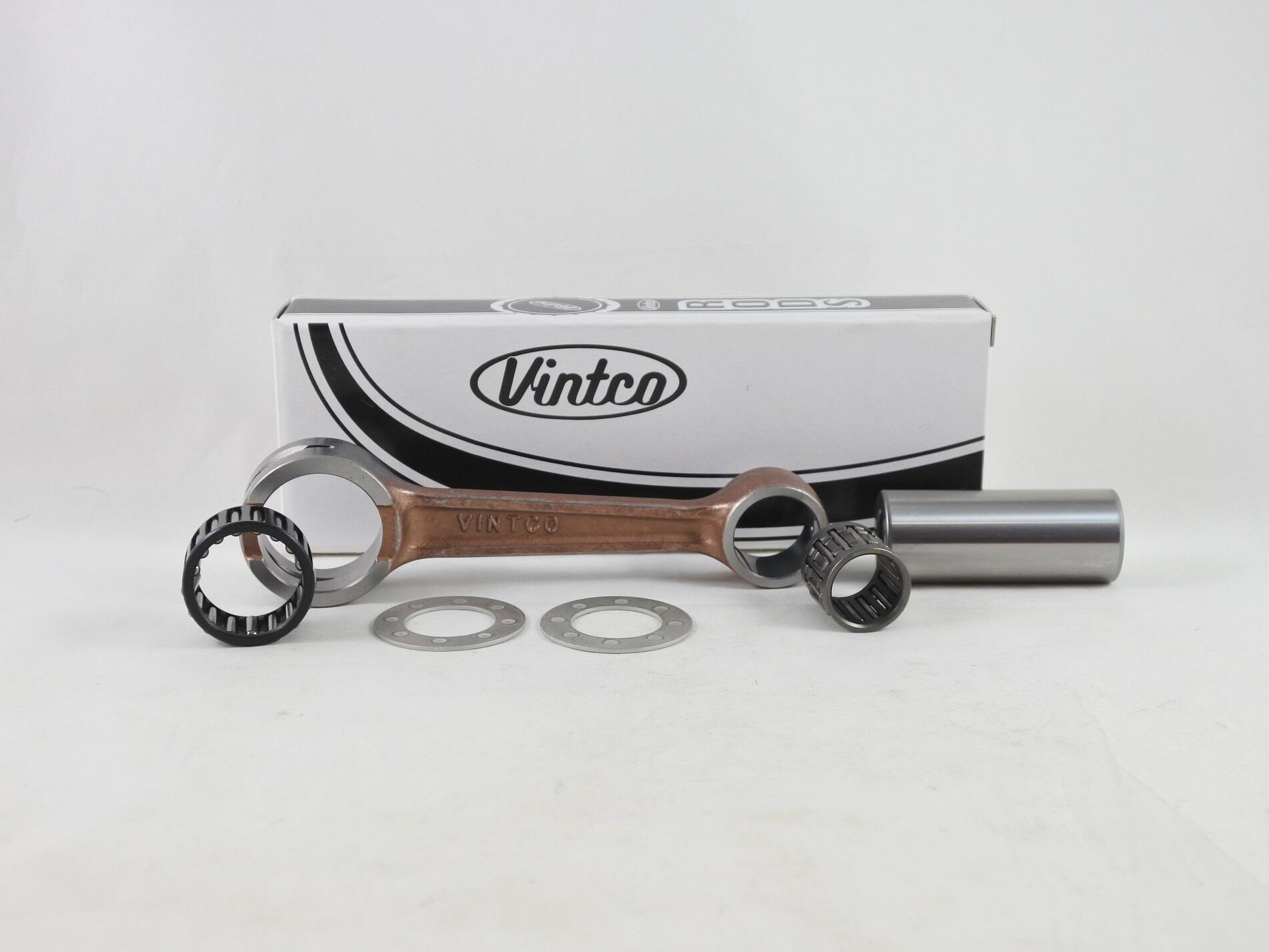

This connecting rod kit is designed for 1976-1981 Yamaha DT125 models and is intended for connecting rod and crankshaft service. The kit includes one heavy-duty forged steel connecting rod, one crank pin, one big end bearing, one wrist pin bearing, and two thrust washers.

Features

• Complete connecting rod kit for Yamaha DT125 models
• Suitable for connecting rod and crankshaft rebuild work
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing, and thrust washers

Specifications

• VintCo Part Number: KR2072
• Connecting rod: 1 heavy-duty forged steel connecting rod
• Crank pin size: 12 x 22 x 54.5 mm
• Big end bearing size: 22 x 28 x 15.8 mm
• Wrist pin bearing size: 16 x 20 x 19.5 mm
• Thrust washers: 2
• Thrust washer size: 22.25 x 37.1 x 1.0 mm

Vehicle Fitments

• 1976 Yamaha DT125
• 1977 Yamaha DT125
• 1978 Yamaha DT125
• 1979 Yamaha DT125
• 1980 Yamaha DT125
• 1981 Yamaha DT125
