HONDA
- CRF450R 2017-2018
- CRF450RX 2017-2018

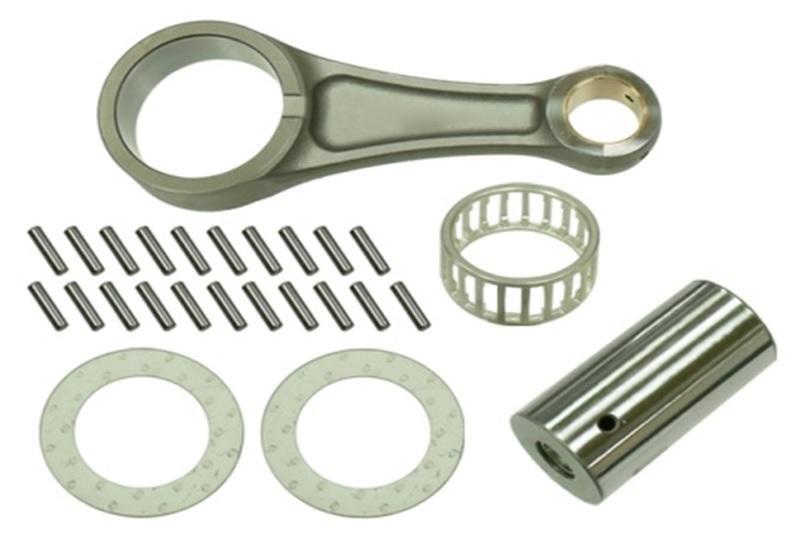

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09091 ?
– Heavy-duty OE replacement connecting rods.
– Certified Chorme alloy steel provides superior strength.
– Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
– Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
– Thrust washers are manufactured from bronze phosphor and are silver coated.
– Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
– Fully Compatible with after market and OE crankshafts.
– Material SNCM220,8620,
|
SIZE |
MM |
|
Centre 2 Centre |
102 |
|
Small End Bearing |
Bush |
|
Small End Bore ? |
19 |
|
Small End Width |
18 |
|
Big End Bearing |
35x43x19.8 |
|
Big End Bore ? |
43 |
|
Big End Width |
19.80 |
|
Big End Pin ? |
35 |
|
Big End Pin Length |
67 |
| Washer Thickness |
35x53x1.0 |
Part No. 56-2969.DR ( .com)
Cross Refrence Numbers Only:
CRANKSHAFT COMPLETE 13000-MKE-A00, PROX 03.1417, WOSSNER P4075 HONDA
